Compulab Airtop3 – Fanless Industrial Edge Server Powered by Natural Airflow Cooling

High Performance, Fanless Edge Computing for Demanding Environments

Airtop3 from Compulab, is a rugged, compact, and modular fanless edge server built for industrial and IoT applications that demand high performance, durability, and silent operation. Engineered with Natural Airflow (NAF) Cooling Technology, Airtop3 passively dissipates up to 300W of heat – entirely without fans – enabling operation across wide temperature ranges and in environments where reliability is critical. Key Features

• Up to Intel® Core™ i9-9900K / Xeon® E-2288G 8-core CPU
• Discrete Quadro RTX 4000 GPU support (160W, passively cooled)
• Supports up to 128 GB DDR4 RAM
• Up to 60 TB storage capacity via modular NVMe and SATA options
• Rich I/O: USB 3.1, RS232, audio, Wi-Fi, LTE, dual GbE, 4K display output
• All-aluminium 7.5L chassis with shock-resistant design
• Tool-free access and modular FACE extension modules
• Operates in extreme temperatures: -40°C to +70°C
• 5-year warranty & maintenance-free operation

Natural Airflow Cooling – Passive, Powerful, Proven

Airtop3’s innovative Natural Airflow (NAF) cooling system eliminates the need for fans by using the waste heat of CPU and GPU to generate upward airflow through CNC-machined air-tube panels. This system ensures:

• Silent, dust-free operation with no moving parts
• High thermal efficiency via flat 25-channel heatpipes and large copper plates
• Durability and consistent performance over time

This makes Airtop3 ideal for mission-critical edge computing, automation systems, digital signage, and industrial IoT deployments.

Compute Performance for Advanced IoT & AI Workloads

Equipped with 9th Gen Intel® Core™ or Xeon® CPUs and support for up to 128 GB DDR4-2666 RAM, Airtop3 is ready for multitasking and low-latency workloads. With discrete GPU support (Quadro RTX 4000) in a passively cooled PCIe x16 slot, it's well-suited for:

• Edge AI inferencing
• Machine learning
• Industrial vision and real-time analytics

Modular & High-Capacity Storage Options

Airtop3 supports:

• 2x NVMe SSDs (up to 2 TB each)
• 4x 2.5” SATA drives with software or Intel RST RAID
• Optional NVM3 module to expand with 3 additional NVMe drives (NF1 30110 form factor), enabling over 60 TB total capacity and >9500 MBps throughput

Networking Options for Any Industrial Use Case

• 2x Intel GbE ports (i210 + i219)
• Optional Wi-Fi 802.11ac + 4G/LTE modem
• FACE Modules enable application-specific enhancements:
  • FM-LAN: 4x independent GbE ports
  • FM-PoE: 4x PoE-enabled GbE ports for IP camera integration
  • FM-OPLN: 2x SFP+ optical LAN ports for long-range fiber connectivity
  • FM-AT3: Additional USB, audio jacks, mini-PCIe, SIM slot, and diagnostics

Industrial-Grade Design and Easy Maintenance

The fanless aluminium chassis is precision-built from die-cast and extruded parts for shock and vibration resistance. It features:

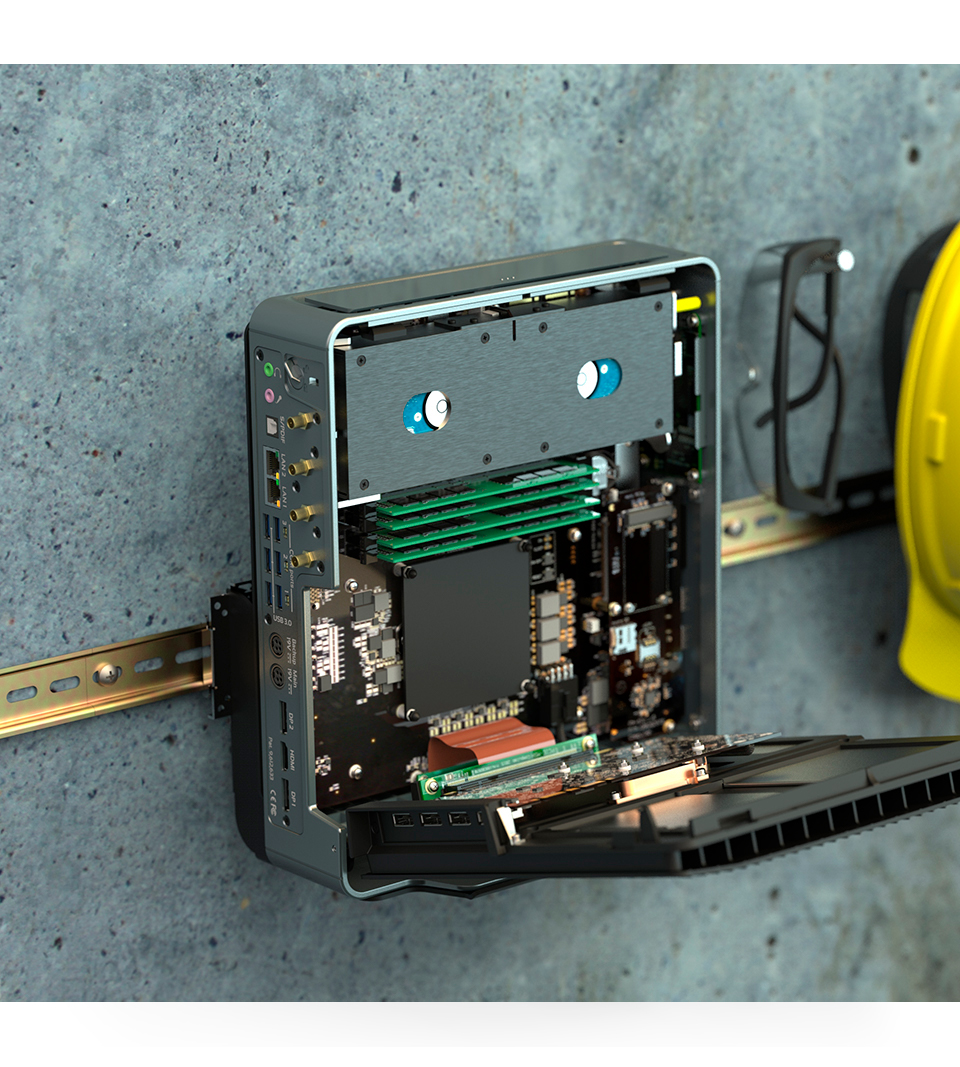

• Tool-free clamshell access to RAM and storage
• Maintenance-free architecture with no fans or filters
• OLED display (I3M) showing real-time metrics like temperature, clock rate, and power consumption

Ideal for Edge AI, IoT, Vision, and Industrial Applications

Airtop3 is designed to adapt to the specialized needs of:

• Edge analytics and machine learning
• Industrial automation and control systems
• Smart city and surveillance infrastructure
• Digital signage and content delivery

Whether you’re deploying in a factory floor, vehicle, or outdoor kiosk, Airtop3 provides the flexibility, performance, and robustness you need – all in a silent 7.5L footprint.

Temperature

Operating Temperature Range:

• Standard: 0°C to 70°C
• Extended (optional): -40°C to +70°C

Datasheet: Airtop3
