Box-PC BPCWL03-i5

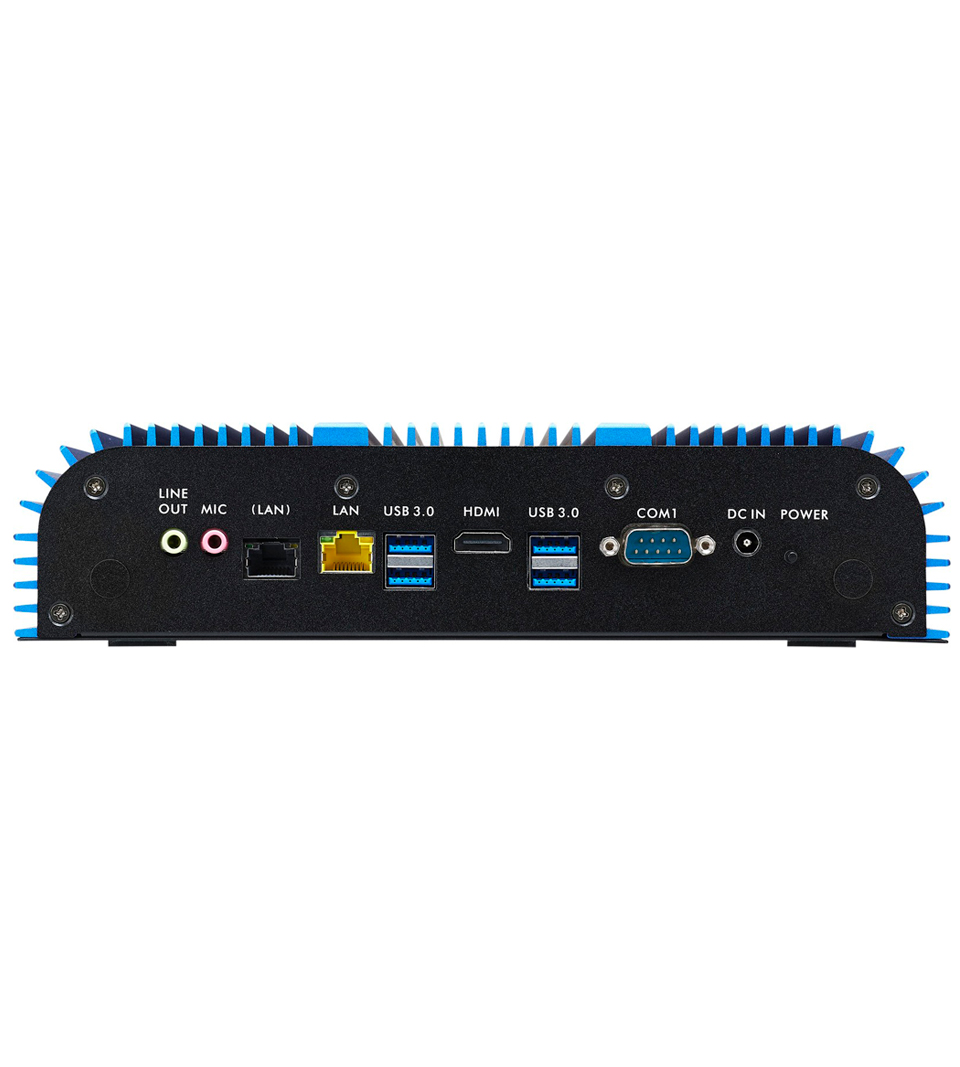

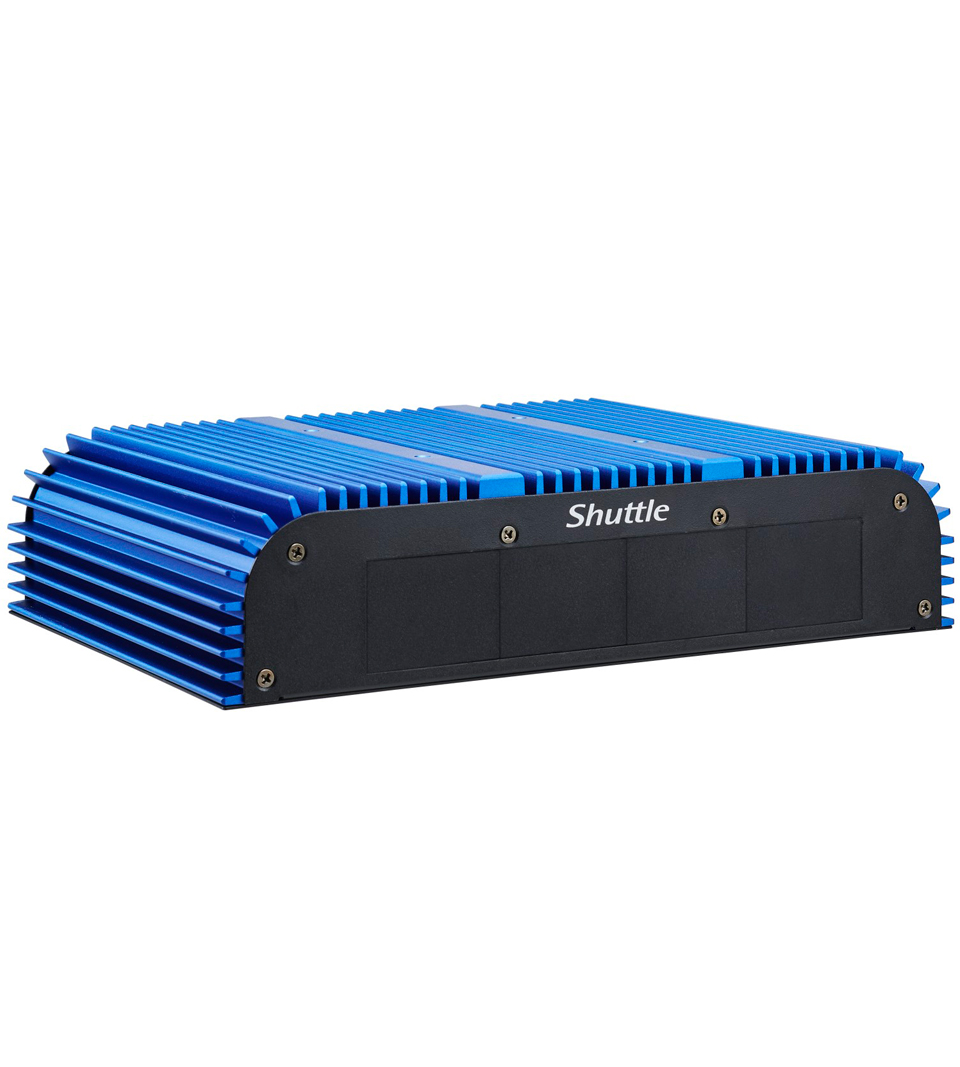

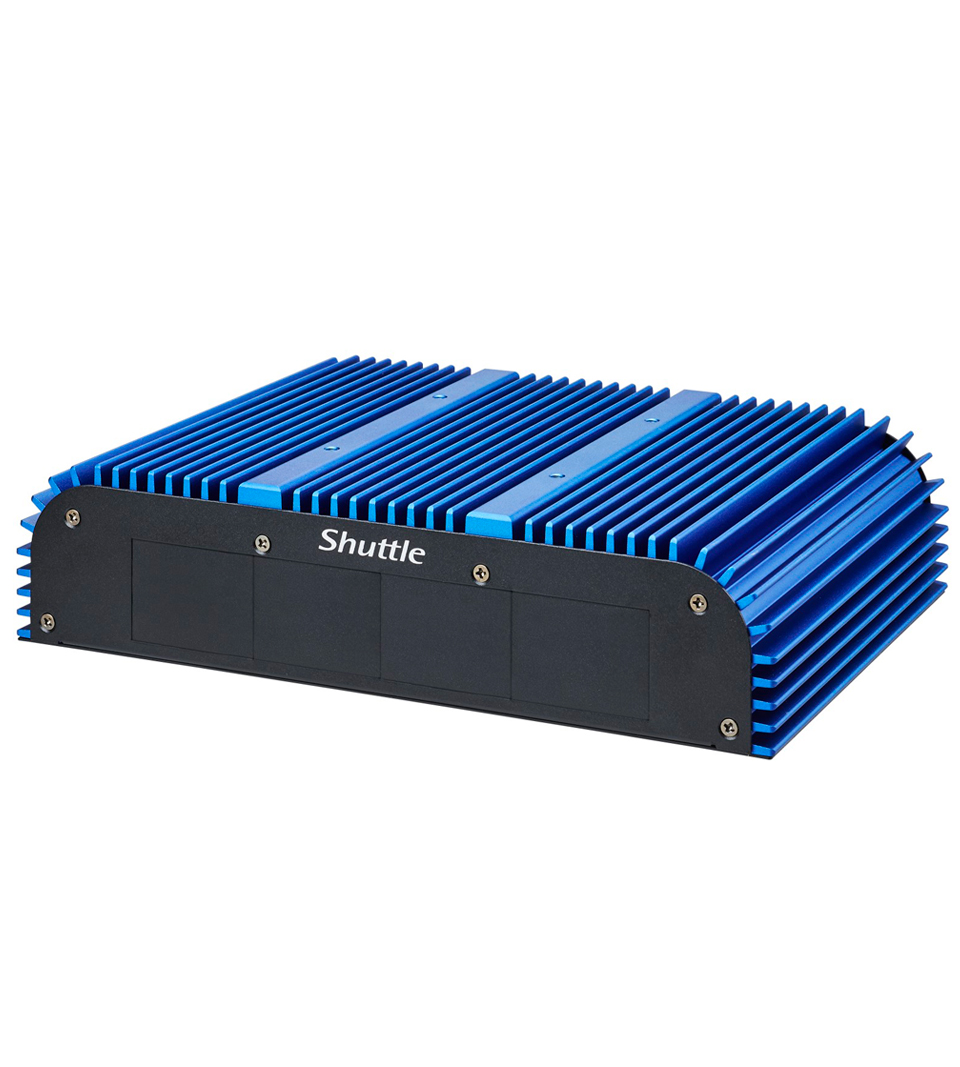

Shuttle Box-PC BPCWL03-i5 – Fanless, Rugged Industrial PC for Harsh Environments
The Shuttle BPCWL03-i5 is a compact and fanless industrial Box-PC, engineered for long-life performance in demanding environments. Powered by the Intel® Core™ i5-8365UE (ULV) processor, it combines energy efficiency with robust processing power—making it ideal for edge computing, machine control, automation, and embedded applications.
Part of Shuttle’s BPCWL0x IPC series, this system features a durable aluminum-steel chassis, passive cooling, and wide voltage input. It offers multiple mounting options (VESA, DIN-rail, ear mount), making it extremely flexible for integration into control cabinets, equipment, or wall-mounted installations.
Key Features:
- Intel® Core i5-8365UE vPro processor – 4 cores, 8 threads, turbo up to 4.1 GHz
- Fanless & silent operation – Reliable performance with passive cooling, no moving parts
- Rugged industrial design – Full metal chassis supports harsh environments and vibration resistance
- Industrial temperature support – Operates from -20°C to +60°C
- Wide input voltage support – Designed for 12V ~ 19V DC operation
- Flexible mounting options – VESA 75x75, DIN-rail, or ear mount
- Expansion-ready – Supports optional LTE/4G kit (LTE01) with external antennas
- Trusted for 24/7 operation – Maintenance-free design for continuous uptime
Ideal for:
- Industrial automation & control systems
- Edge computing in smart manufacturing
- Equipment integration and remote monitoring
- Embedded applications in harsh environments
Datasheet: Box-PC BPCWL03-i5
Additional information
Contact us: | Email: [email protected] |
---|---|
Classification Overview | Box PC, Edge Computer, Embedded PC, IoT Edge Device |
Design | Aluminium, Fanless, Steel |
Operating Systems | Linux, Windows |
Processors | Intel® Core™ i5-8365UE Whiskey Lake |
Temperature | -20℃ to +60℃ |
