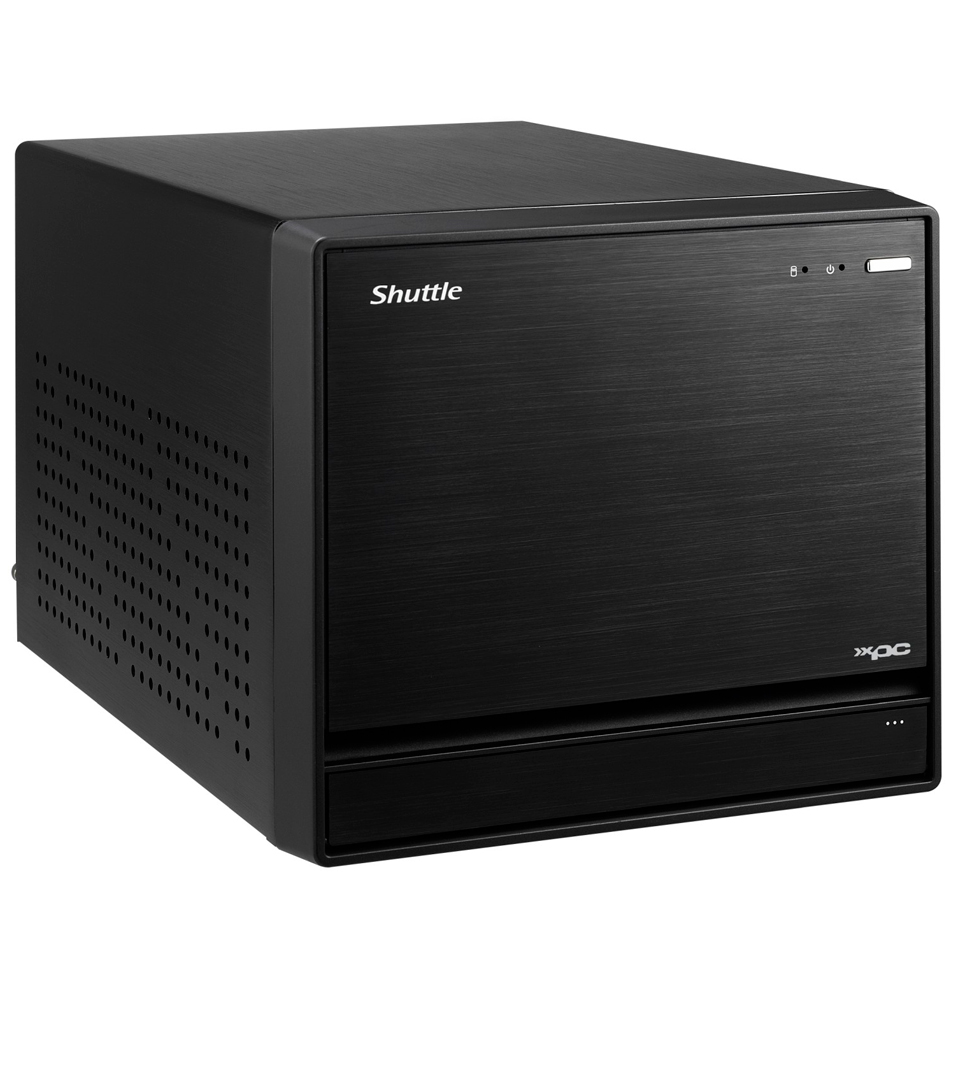

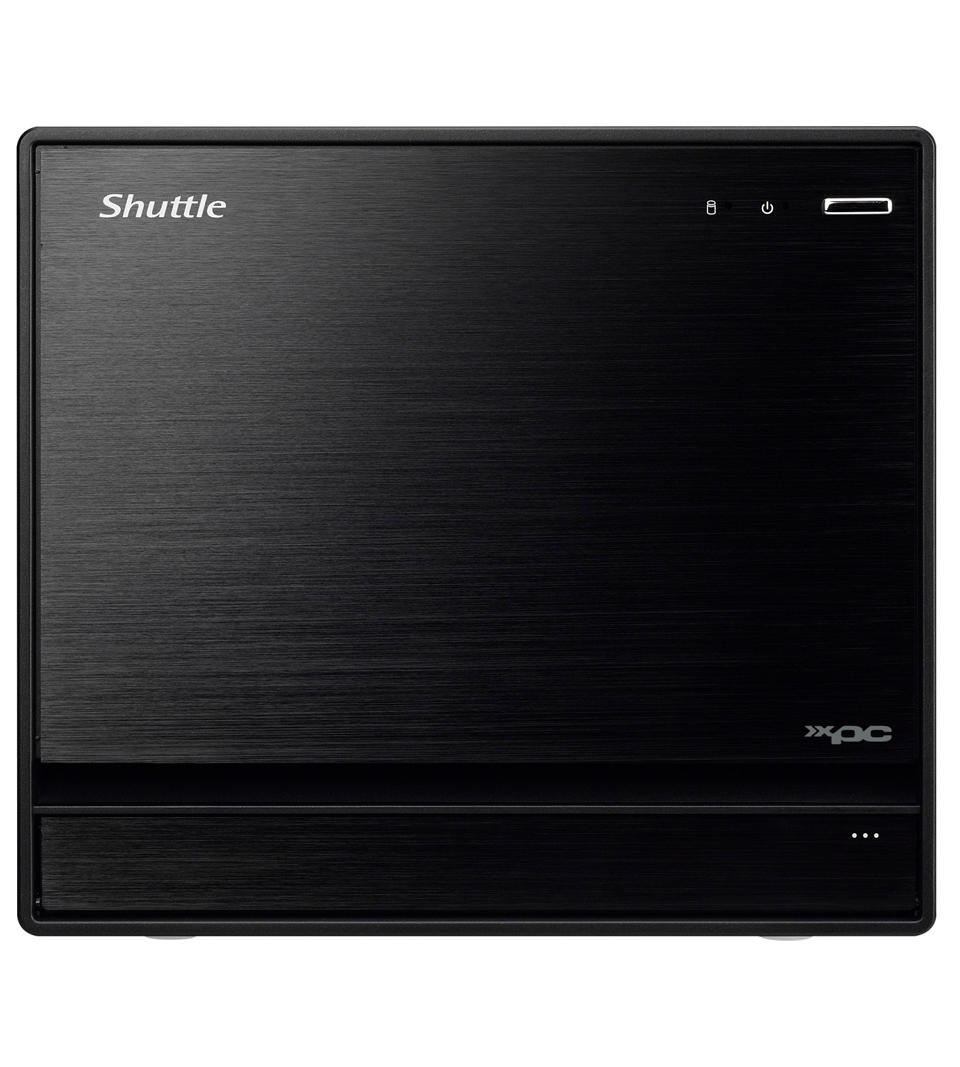

Shuttle XPC Cube SW580R8 – Compact 14-Liter Barebone for Server and Workstation Applications

The Shuttle XPC Cube SW580R8 is a versatile 14-liter mini PC barebone, engineered to support high-performance server and workstation applications. Compatible with 10th and 11th Gen Intel® Core™ and Xeon® W-series processors, it offers robust computing power in a compact form factor. The system accommodates up to 128 GB DDR4-3200 RAM, supports quad 3.5" drives with RAID configurations, and provides expansion slots for dual-slot graphics cards. Its aluminum chassis and efficient cooling system ensure reliable operation even under heavy workloads.

Key Features:

  • Processor Support: Compatible with Intel® Core™ i9/i7/i5/i3, Pentium®, Celeron®, and Xeon® W-series processors (LGA1200, up to 125W TDP).​
  • Memory Capacity: Four DIMM slots supporting up to 128 GB DDR4-3200 RAM; ECC memory support with Xeon® processors.​
  • Storage Options: Four 3.5" drive bays supporting RAID 0/1/5/10 configurations; two M.2-2280 slots for NVMe SSDs.​
  • Graphics Expansion: PCI-Express x16 4.0 slot supporting dual-slot graphics cards.​

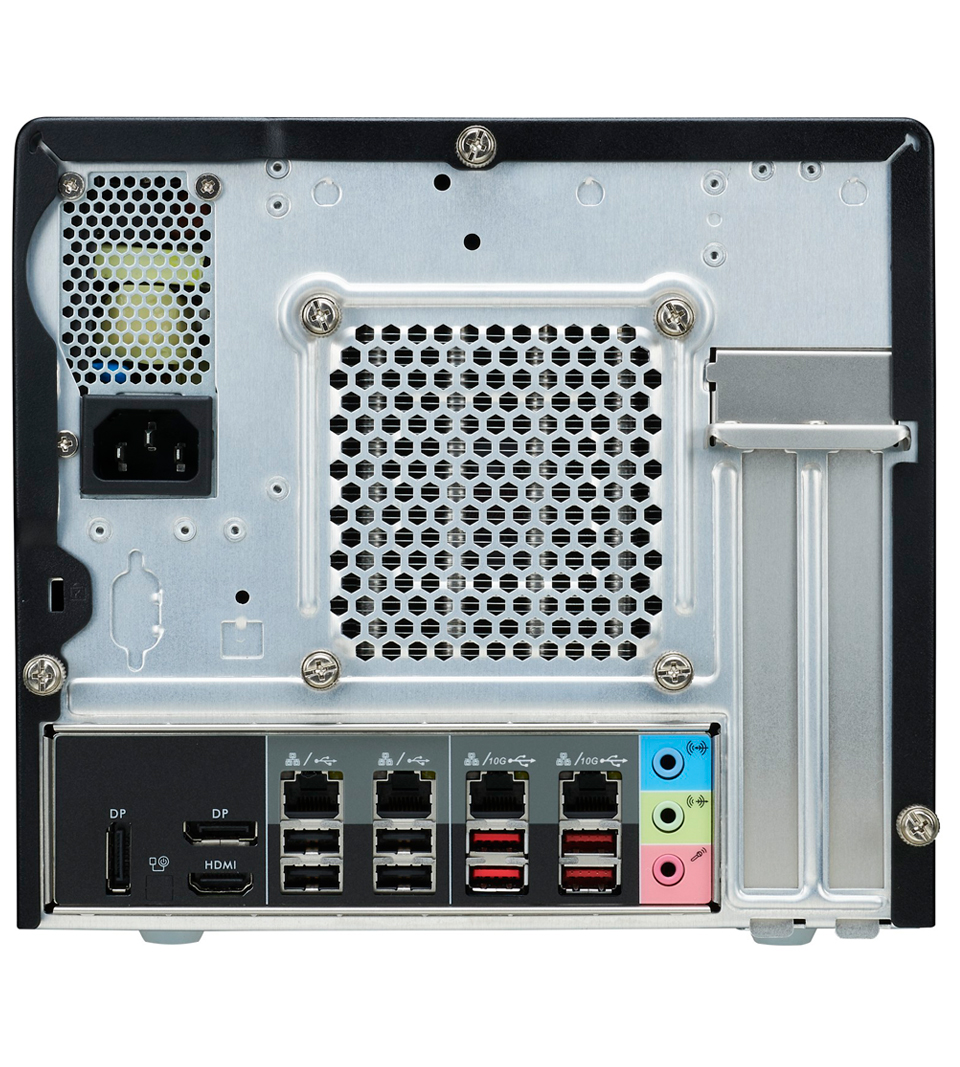

  • Networking: Four RJ45 ports—two Intel® Gigabit Ethernet and two Realtek 2.5GbE—for enhanced network performance.​
  • Display Outputs: Triple display support via HDMI 2.0b and dual DisplayPort 1.4 outputs.​
  • USB Ports: Twelve USB ports, including four USB 3.2 Gen2, four USB 3.2 Gen1 (one Type-C), and four USB 2.0.​
  • Cooling System: Integrated Cooling Engine (I.C.E) heat-pipe technology with a linear-controlled 92mm fan for efficient thermal management.​
  • Power Supply: Internal 500W 80 PLUS Gold certified power supply for energy efficiency.​

Ideal for:

  • Mini-Server Deployments: Supports RAID configurations and robust networking capabilities for small to medium-sized server applications.​
  • Workstation Setups: Accommodates high-performance CPUs and GPUs, suitable for professional content creation and CAD applications.​
  • High-Performance Computing: Expandable memory and storage options make it ideal for data-intensive tasks.



Datasheet: XPC cube SW580R8

Additional information

Contact us:

Email: [email protected]

Classification Overview

Edge Computer, Edge Server, Embedded PC, Workstation

Design

Aluminium, Fan-assisted

Operating Systems

Linux, Windows

Temperature

0°C to +40°C​

Processor

Intel® Celeron / Pentium, Intel® Core™, Intel® Xeon®
