XPC slim DH670

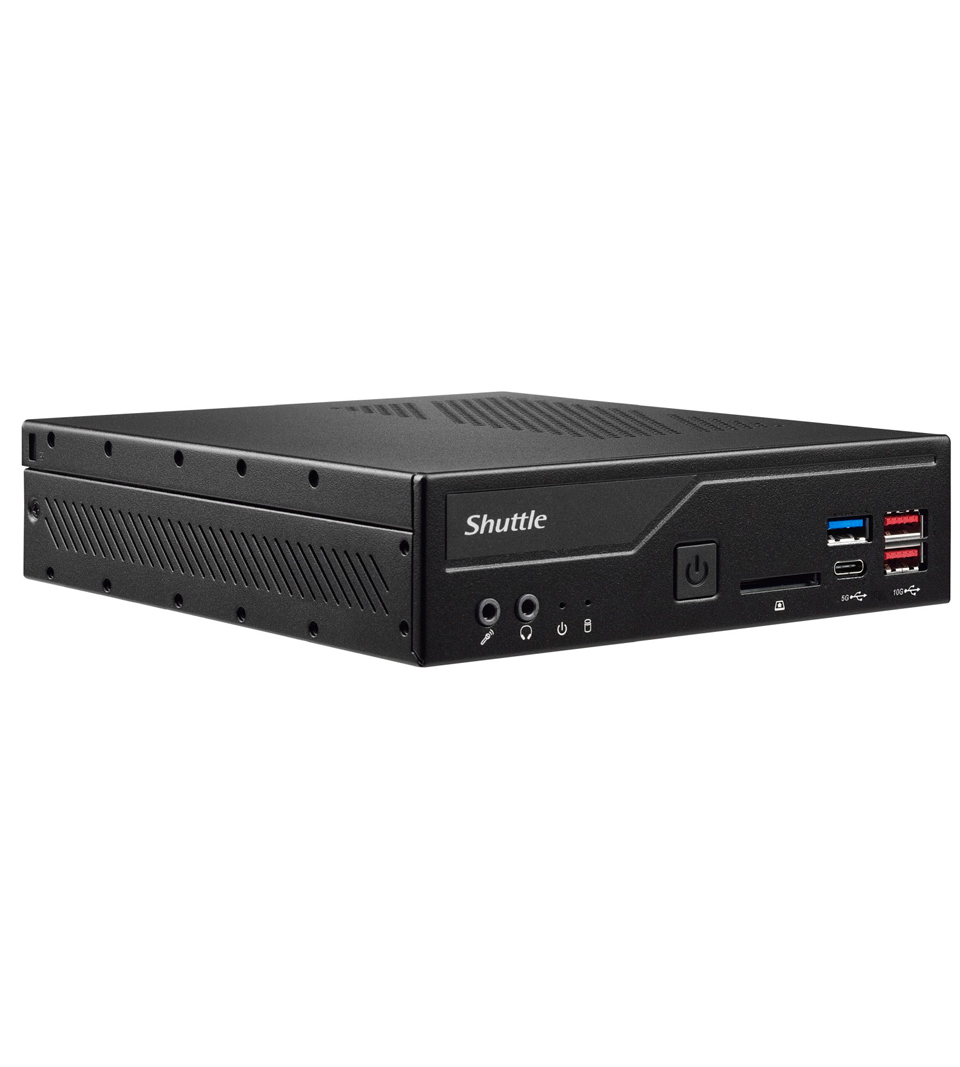

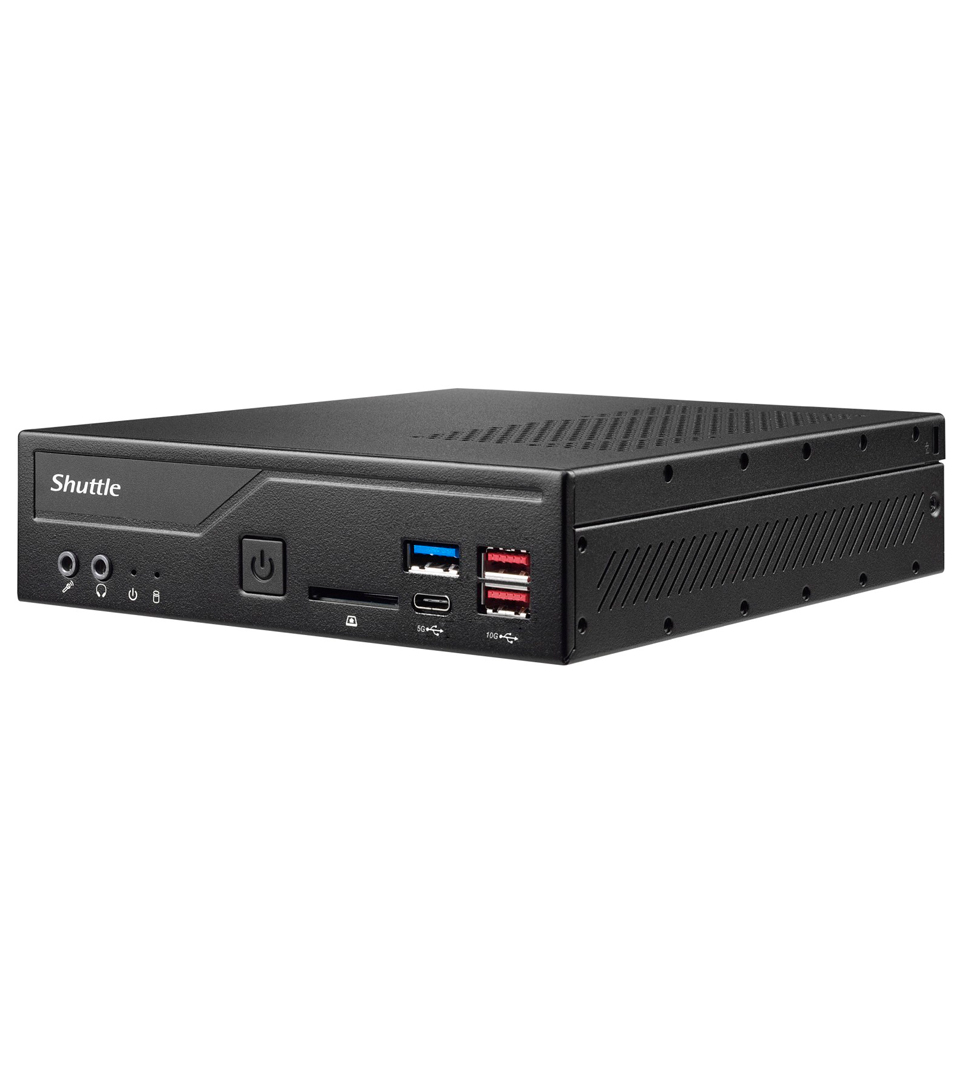

Shuttle XPC Slim DH670 – Compact 1.3-Liter PC Supporting Intel 12th Gen Processors and Quad 4K Displays

The Shuttle XPC Slim DH670 is a robust 1.3-liter barebone PC, engineered to harness the power of Intel's 12th, 13th, and 14th Gen Core™ desktop processors (LGA1700). Despite its compact size, this system supports quad 4K displays via dual HDMI 2.0b and dual DisplayPort outputs, making it ideal for applications requiring high-resolution multi-display setups. Its durable metal chassis and efficient cooling system ensure reliable 24/7 operation in environments with ambient temperatures up to 50°C, catering to professional applications such as digital signage, POS, surveillance, and automation.

Key Features:

  • Processor Support: Compatible with Intel® 12th, 13th, and 14th Gen Core™, Pentium®, and Celeron® processors (LGA1700, up to 65W TDP). ​
  • Memory Capacity: Two SO-DIMM slots supporting up to 64 GB DDR4-3200 RAM. ​
  • Display Outputs: Supports up to four independent 4K displays via 2x HDMI 2.0b and 2x DisplayPort 1.4. ​
  • Storage Options:
    • One 2.5" SATA 6Gb/s bay for HDD/SSD (up to 9.5 mm height).​
    • One M.2 2280 Type M slot supporting both SATA and PCIe 4.0 x4 NVMe SSDs. ​
  • Expansion Slots:
    • One M.2 2230 Type E slot for Wi-Fi/Bluetooth modules. ​

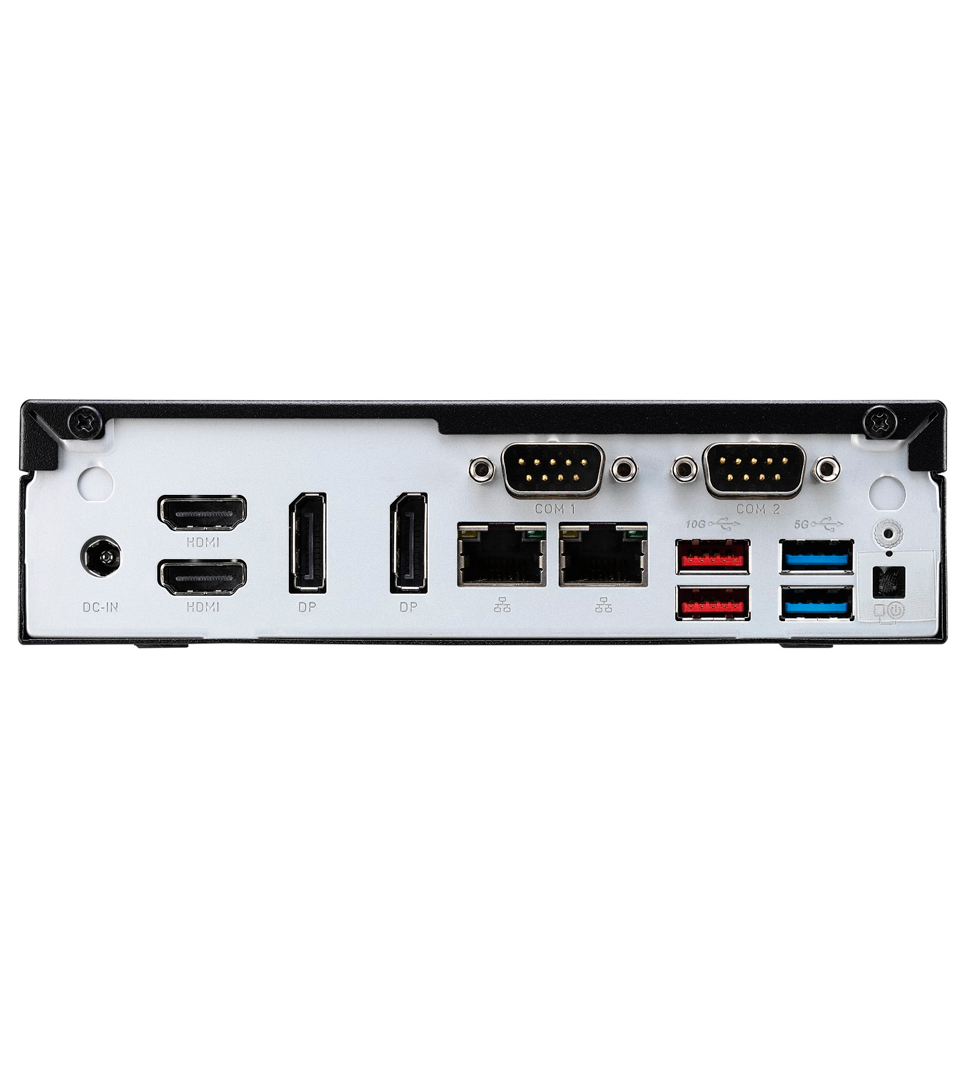

  • Connectivity:
    • Dual Intel® Gigabit LAN ports.​
    • Four USB 3.2 Gen 2 ports.​
    • Four USB 3.2 Gen 1 ports (including one Type-C).​
    • Two RS232 COM ports (one configurable for RS422/RS485). ​
  • Cooling System: Shuttle’s exclusive heat-pipe cooling module with smart fan design ensures efficient thermal management for continuous operation. ​
  • Operating Temperature: Designed for reliable operation in environments with ambient temperatures ranging from 0°C to 50°C. ​
  • Power Supply: External 120W, 19V power adapter.

Ideal for:

  • Digital Signage: Supports multiple high-resolution displays for dynamic content delivery.​
  • Point-of-Sale (POS) Systems: Compact design with extensive connectivity for various peripherals.​
  • Surveillance Systems: Reliable 24/7 operation with robust networking capabilities.​
  • Industrial Automation: Versatile expansion options for integrating specialized control modules.



Datasheet: XPC slim DH670

Additional information

Contact us:

Email: [email protected]

Classification Overview

Box PC, Edge Computer, Embedded PC, IoT Edge Device

Design

Fan-assisted

Operating Systems

Linux, Windows

Processor

Intel® Celeron / Pentium, Intel® Core™

Temperature

0°C to +50°C
