XPC slim XH510G

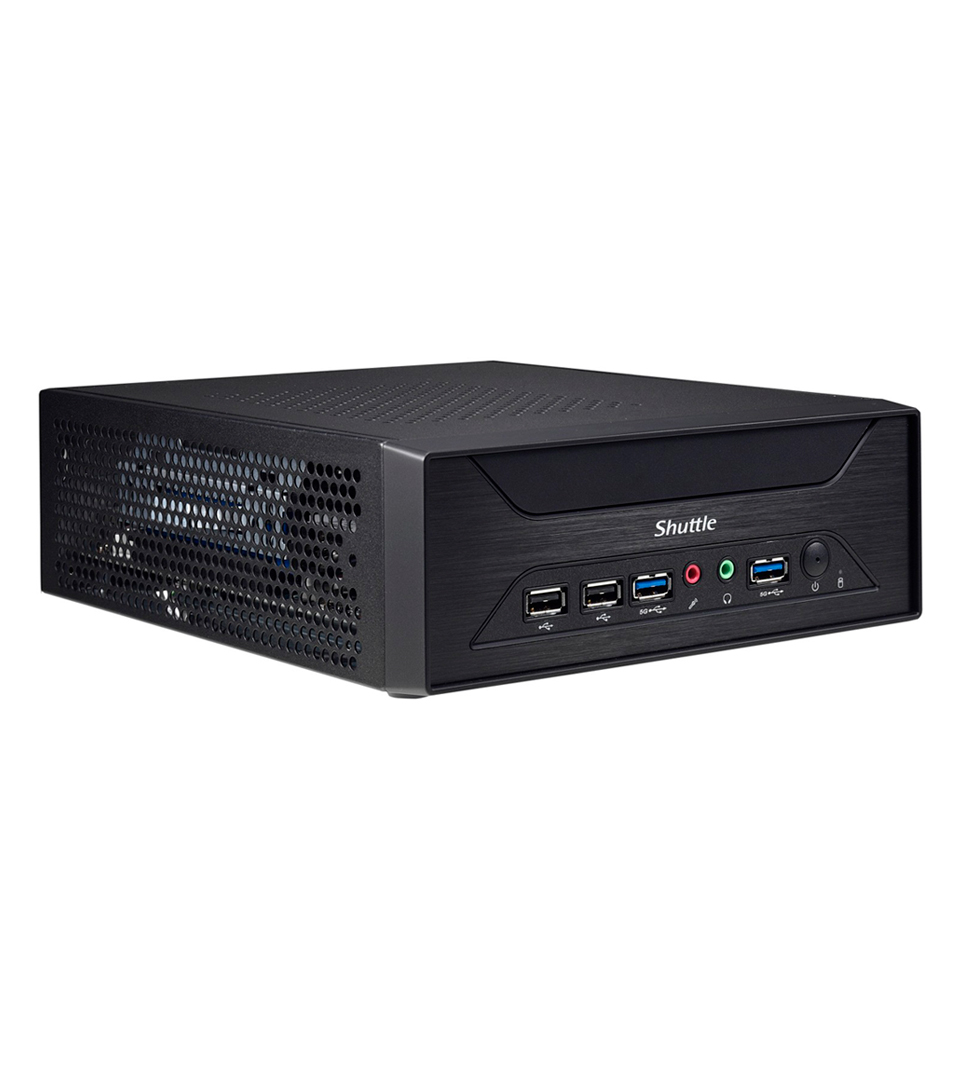

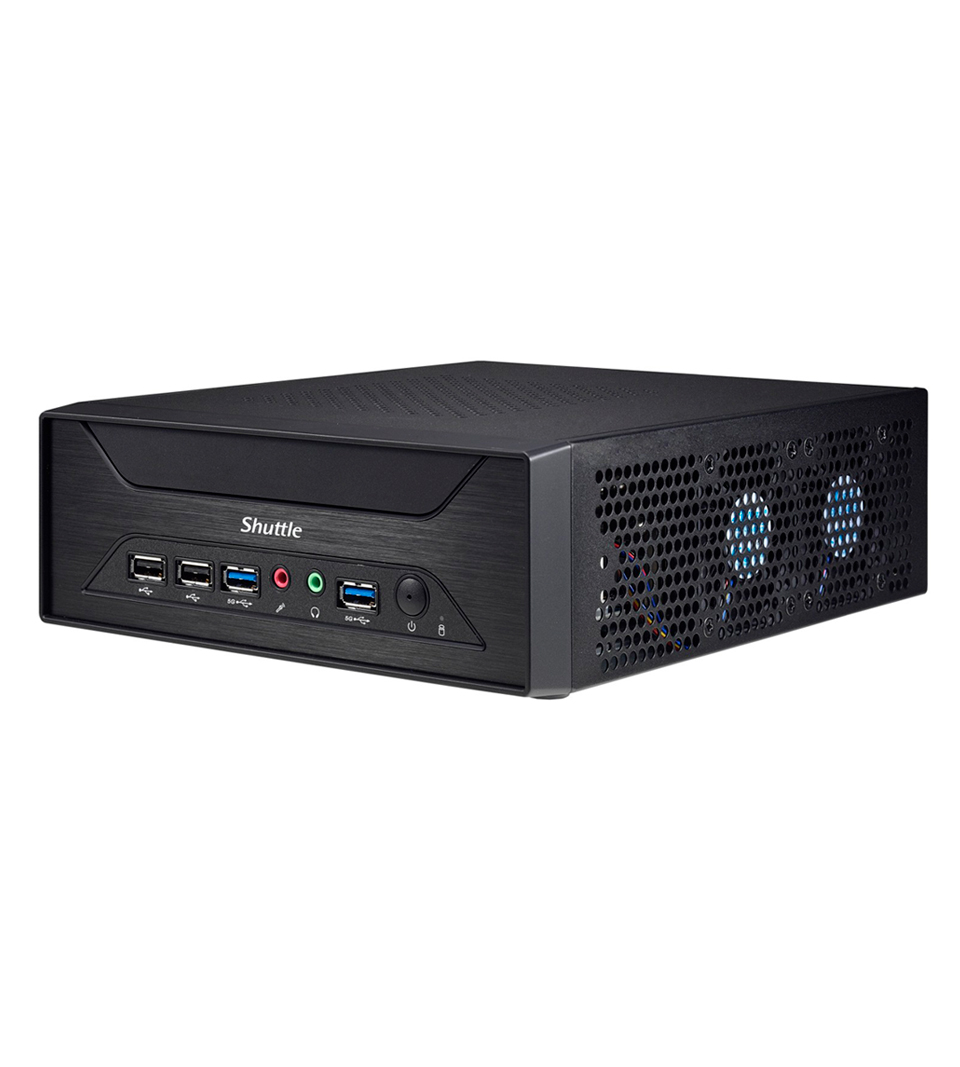

Shuttle XPC Slim XH510G – Compact 3-Liter PC with PCIe Expansion

The Shuttle XPC Slim XH510G is a versatile 3-liter barebone PC, designed to accommodate single-slot PCI-Express expansion cards. Compatible with 10th and 11th Gen Intel® Core™ processors, it offers robust performance in a compact form factor. This makes it ideal for applications such as video wall presentations, graphics workstations, media capturing, surveillance, POS systems, and industrial automation.

Key Features:

  • Processor Support: Supports Intel® 10th/11th Gen Core™, Pentium®, and Celeron® processors (LGA1200, up to 65W TDP). ​
  • Memory Capacity: Two SO-DIMM slots supporting up to 64 GB DDR4-3200 RAM. ​
  • Expansion Slot: One PCIe x16 4.0 slot for single-slot expansion cards (max. dimensions: 208.5 x 120 x 30 mm). ​
  • Storage Options:
    • One 2.5" SATA bay for HDD/SSD (up to 9.5 mm height).​
    • Two M.2 2280 slots: one supporting PCIe x4 NVMe SSDs, the other supporting SATA SSDs.​

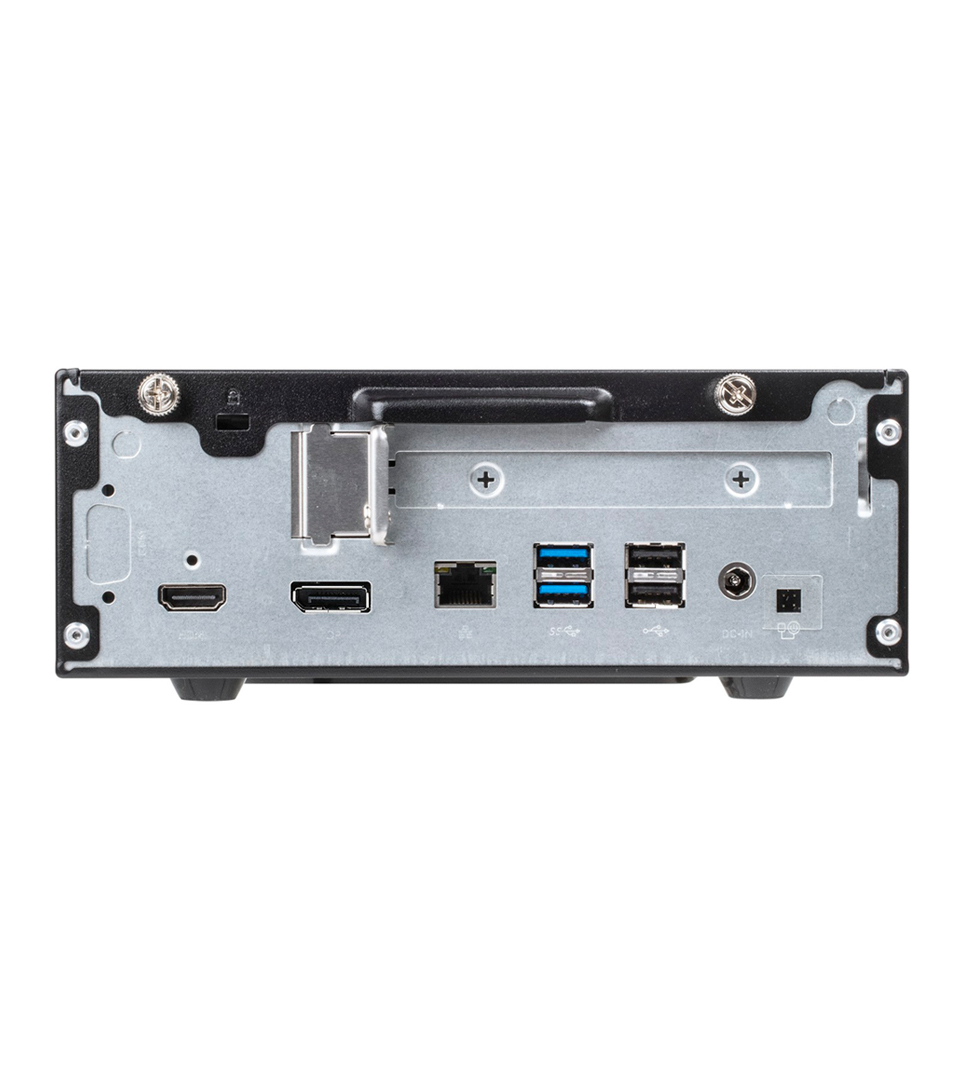

  • Display Outputs: Supports dual displays via HDMI 2.0a and DisplayPort 1.4, both capable of 4K UHD at 60Hz. ​
  • Connectivity:
    • Four USB 3.2 Gen 1 ports.​
    • Four USB 2.0 ports.​
    • Intel® Gigabit LAN (RJ45).​
    • Optional RS232 COM port and VGA port via accessories.​
  • Cooling System: Shuttle’s exclusive heat-pipe cooling module with smart fan design ensures efficient thermal management for 24/7 operation. ​
  • Power Supply: External 180W, 19.5V power adapter.​

Ideal for:

  • Digital Signage: Compact size and dual-display support make it suitable for dynamic content delivery.​
  • Industrial Automation: PCIe expansion allows integration of specialized control cards.​
  • Surveillance Systems: Reliable 24/7 operation with robust connectivity options.​
  • Point-of-Sale (POS) Systems: Compact design with ample connectivity for peripherals.



Datasheet: Barebone XPC slim XH510G

Additional information

Contact us:

Email: [email protected]

Classification Overview

Box PC, Commercial-grade Box PC, Edge Computer, Embedded PC, Embedded Vision System

Design

Aluminium, Fan-assisted, Steel

Operating Systems

Linux, Windows

Temperature

0°C to +40°C​

Processor

Intel® Celeron / Pentium, Intel® Core™
