XPC slim XH510G2

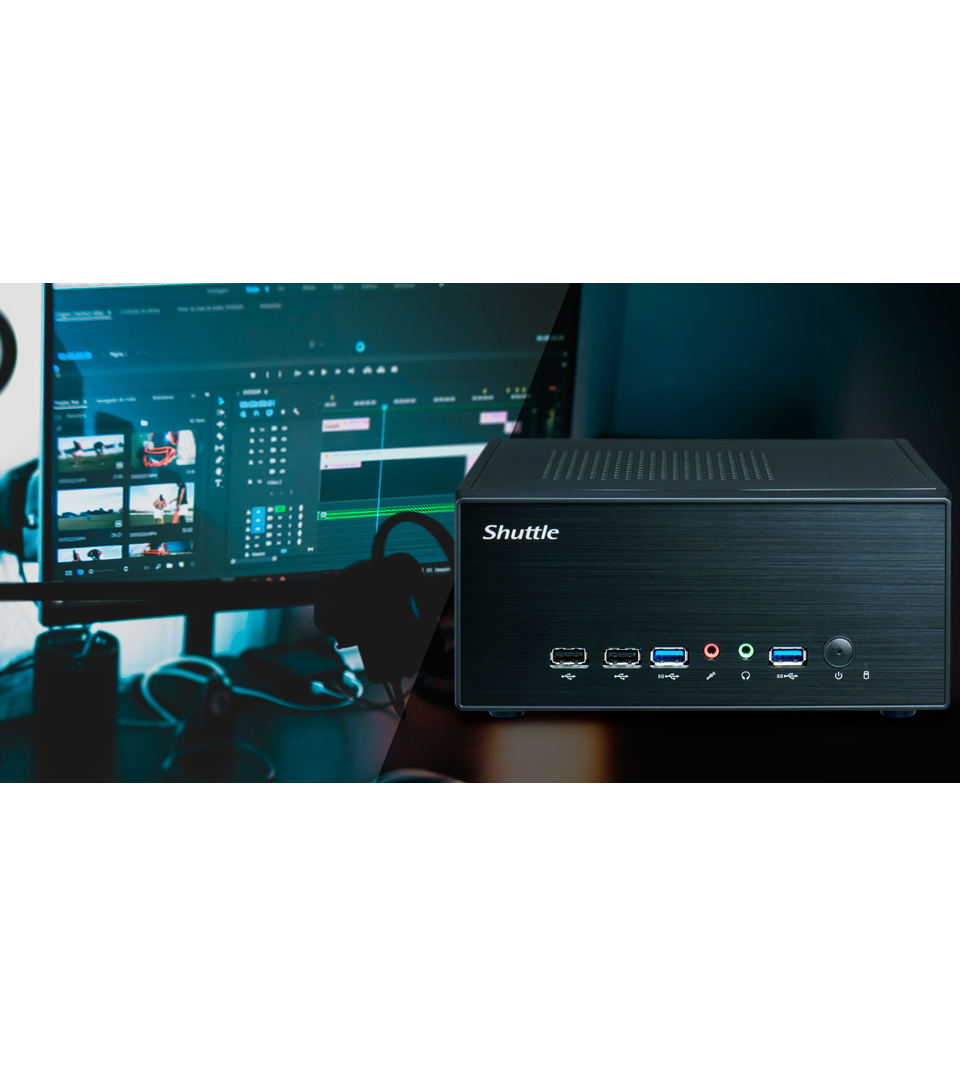

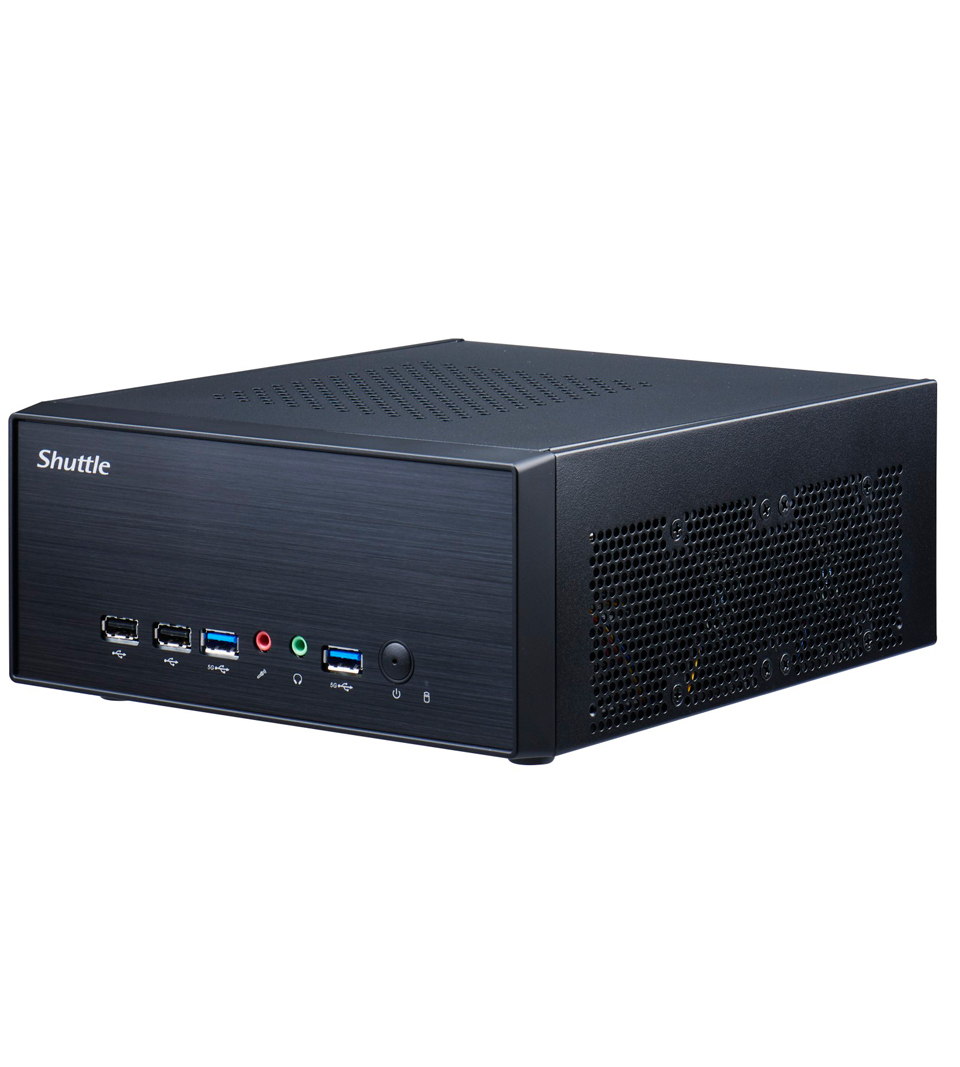

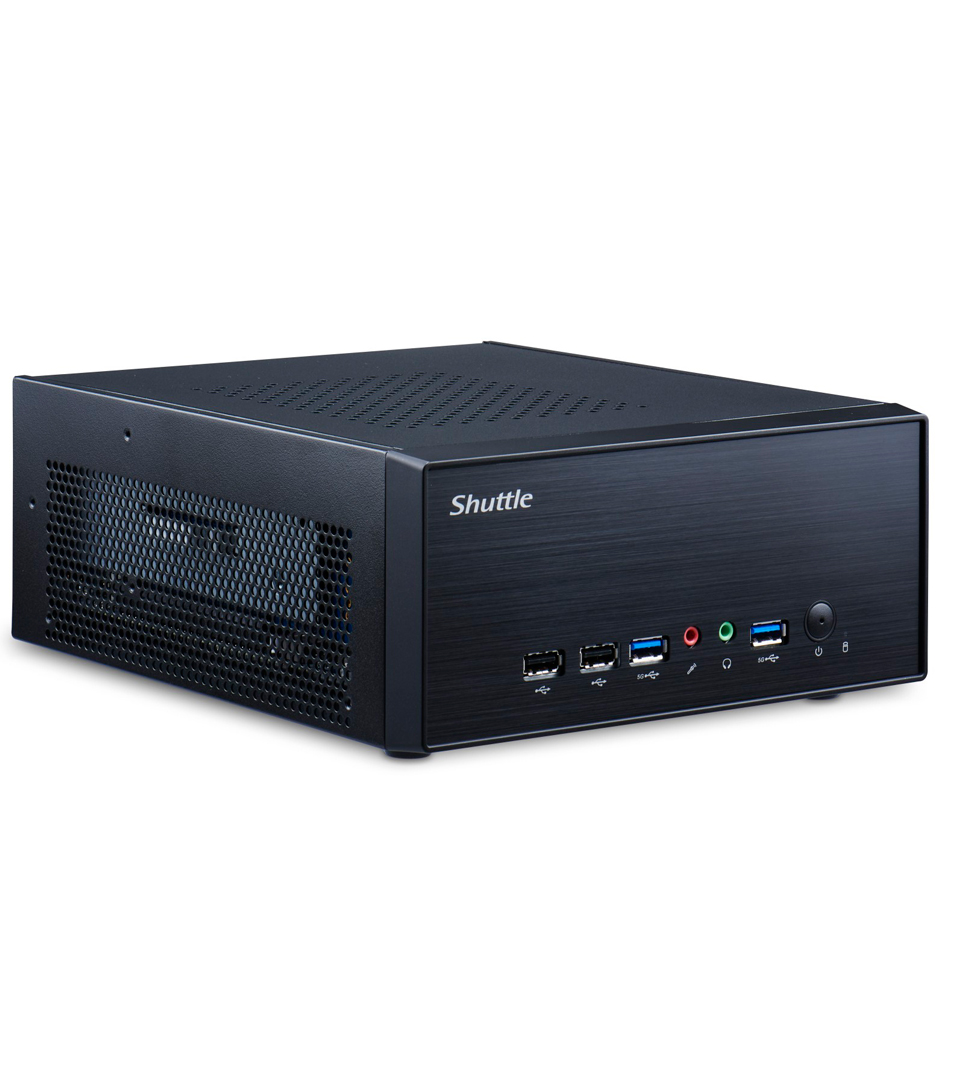

Shuttle XPC slim XH510G2 – Compact, Dual-PCIe Barebone PC for Demanding Industrial & Professional Applications

The Shuttle XPC slim XH510G2 is a powerful and compact 4.7-litre barebone PC, purpose-built for professional, industrial, and media-rich environments that require flexible expansion and high performance. Equipped with support for Intel® 10th and 11th Gen Core™ processors (LGA1200), it integrates seamlessly into demanding applications where compactness, stability, and performance are key.

This system features two PCIe expansion slots, making it ideal for add-in cards such as graphics adapters, capture cards, or I/O controllers. Whether you're running video walls, media servers, surveillance platforms, or network monitoring tools, the XH510G2 delivers reliable computing power in a small footprint. It even handles mid-range gaming and GPU-based acceleration with ease.

Key Features:

  • Supports Intel® Core i9/i7/i5/i3, Pentium®, and Celeron® (10th/11th Gen, LGA1200)
  • Dual PCIe expansion:
    • 1x PCIe x16 Gen 4.0 (for dual-slot GPUs or capture cards)
    • 1x PCIe x1 Gen 3.0 (when not using dual-slot GPUs)
  • Compact 4.7L chassis – fits into tight installations while offering desktop-class performance

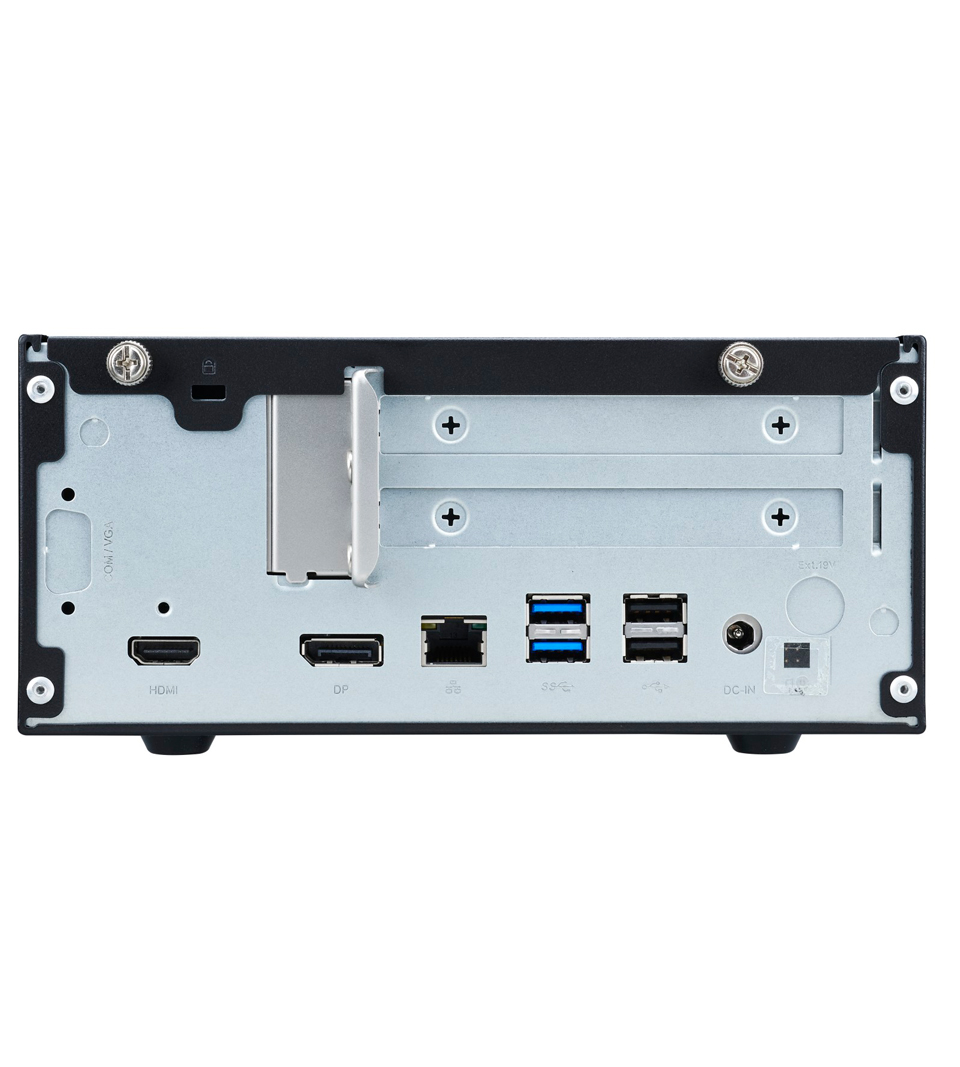

  • Dual display support via HDMI 2.0a + DisplayPort 1.4 (up to 4K UHD)
  • Storage options:
    • 1x 2.5” SATA drive bay (up to 9.5 mm height)
    • 2x M.2 2280 SSD slots (NVMe / SATA)
  • 1x M.2 2230 E-Key slot for optional Wi-Fi/Bluetooth module
  • Dual fan-assisted heat-pipe cooling system for stable 24/7 operation
  • Reliable 180W external power supply for GPU and system demands
  • Operating temperature: 0°C to 50°C

Ideal for:

  • Digital signage & video walls
  • Media capture and encoding platforms
  • Surveillance & security systems
  • POS / POI terminals with peripheral expansion
  • Network management & control systems
  • GPU-enhanced computing in edge deployments



Datasheet: XPC slim XH510G2

Additional information

Contact us:

Email: [email protected]

Classification Overview

Box PC, Edge Computer, Embedded PC, IoT Edge Device

Design

Fan-assisted, Steel

Operating Systems

Linux, Windows

Processor

Intel® Celeron / Pentium, Intel® Core™

Temperature

0°C to +50°C
