XPC slim XH610

Shuttle XPC Slim XH610 – Compact 3-Liter PC for Versatile Industrial & Commercial Use

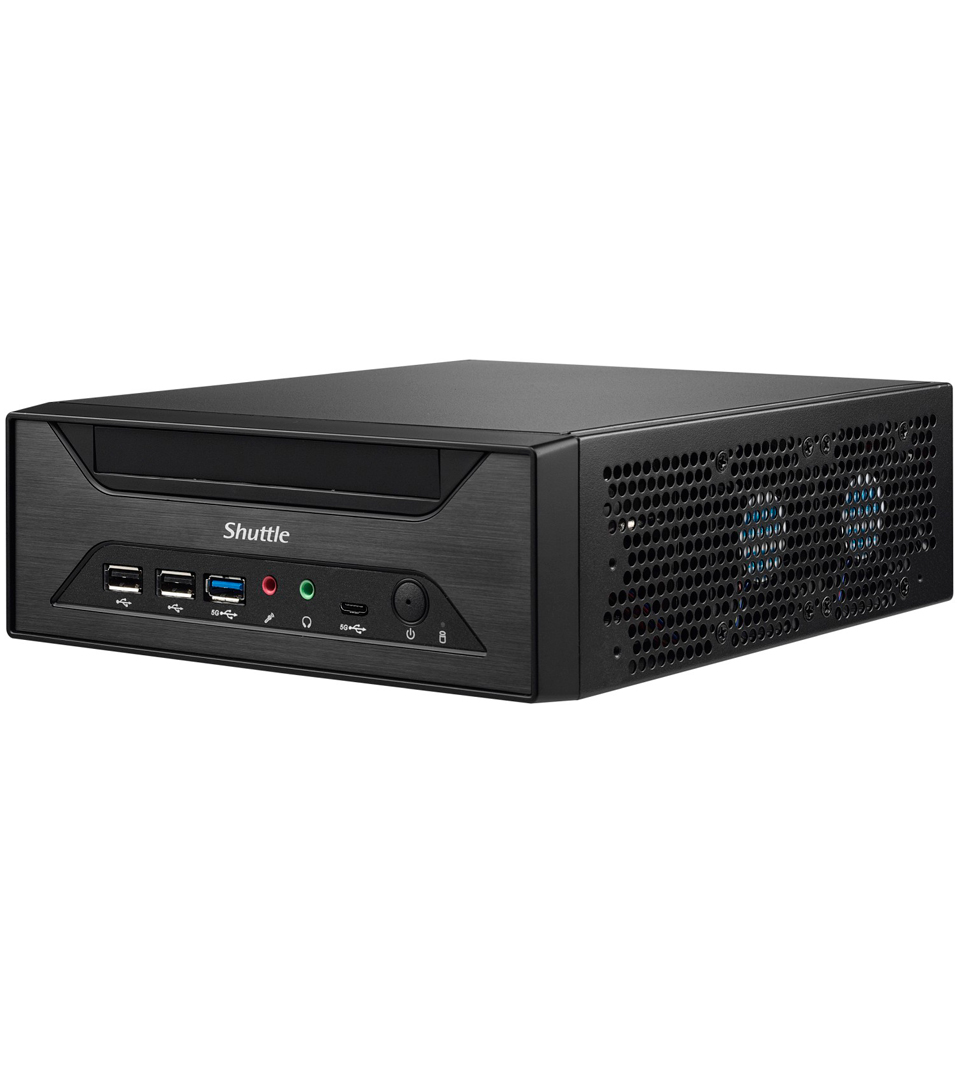

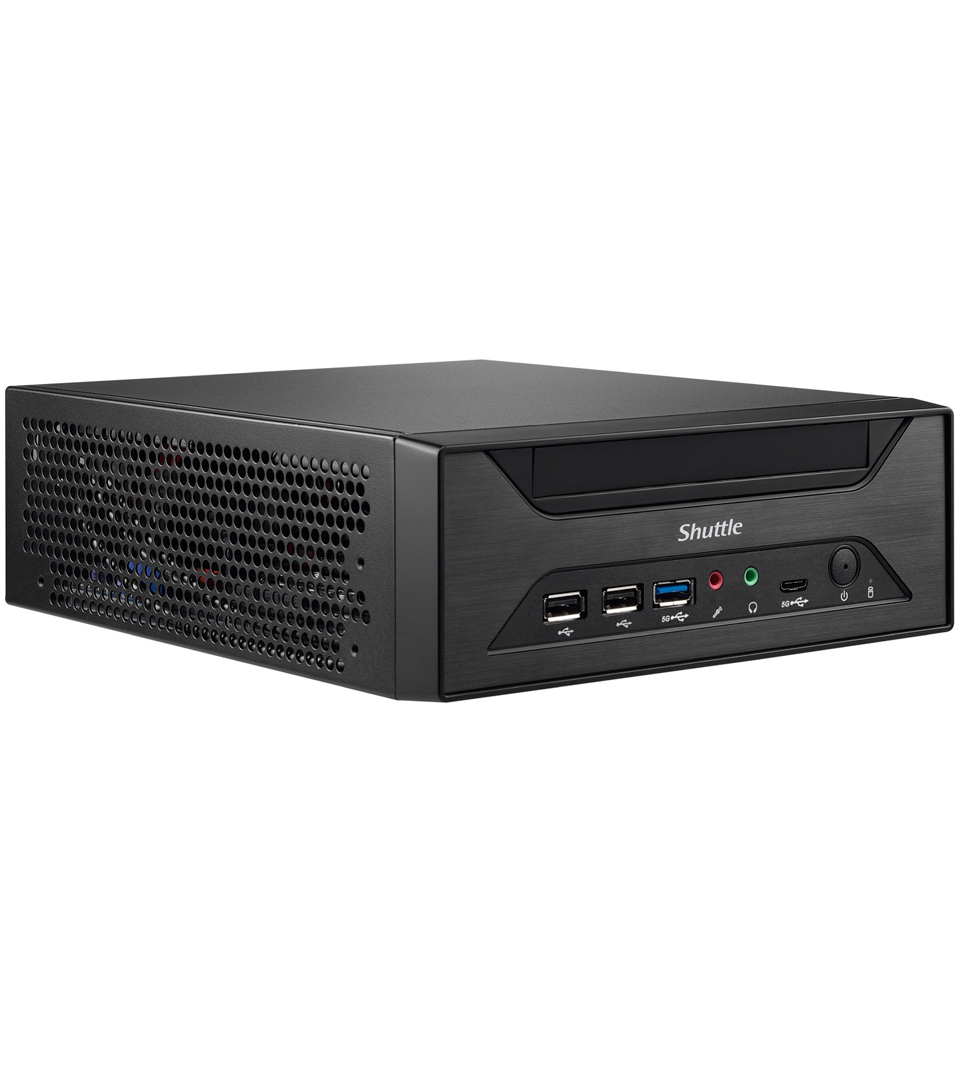

The Shuttle XPC slim XH610 is a compact and powerful 3-liter barebone PC, built to support Intel® 12th, 13th, and 14th Gen Core processors (LGA1700). Designed with Shuttle’s proven heat-pipe cooling system, it offers stable and quiet performance in environments that demand reliability and long-term uptime.

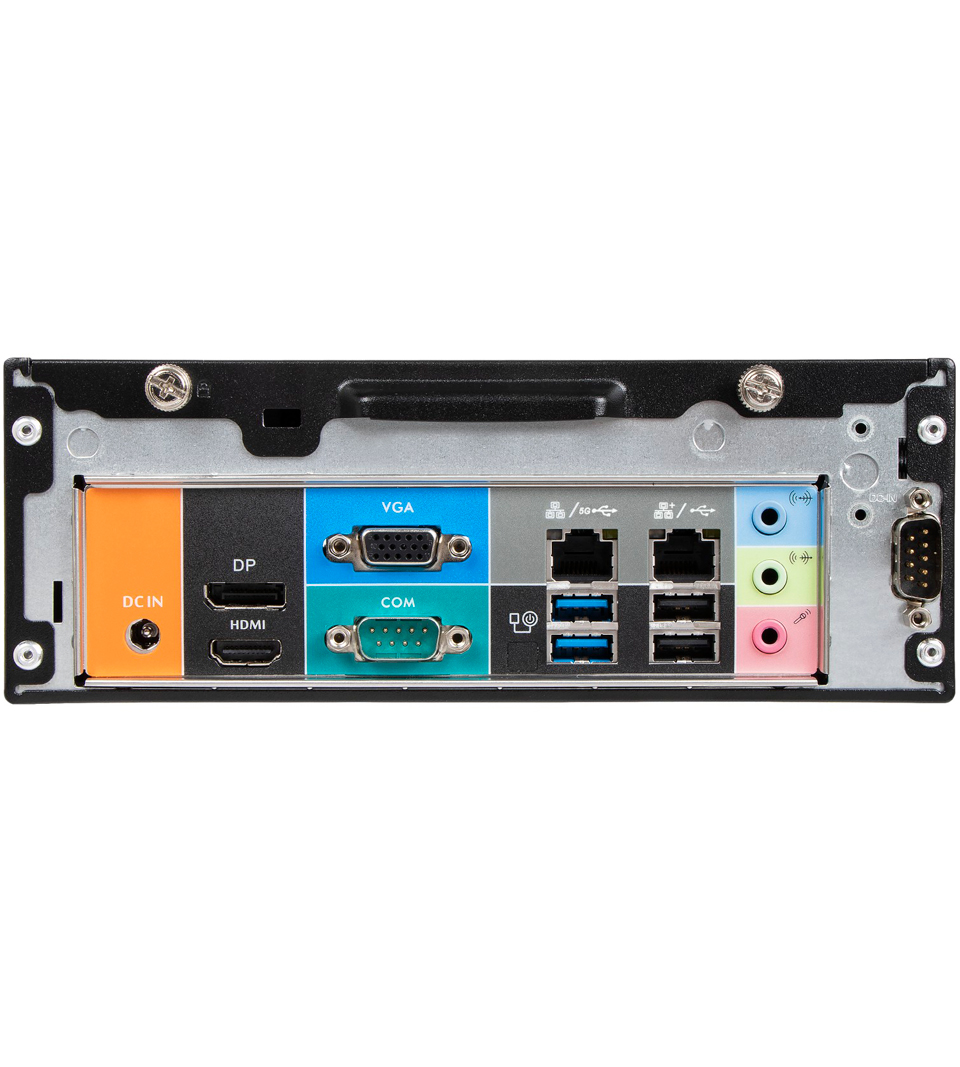

Its rugged steel chassis accommodates an optional slim optical drive, two 2.5" drives, and an M.2 SSD—making it a flexible platform for storage-intensive and embedded applications. With support for triple independent Ultra HD displays (HDMI, DisplayPort, VGA), dual LAN (2.5G + 1G), USB 3.2, and optional expansion up to five COM ports, this slim system is perfect for retail, signage, surveillance, office, or industrial environments.

Key Features:

• Supports Intel® Core 12th/13th/14th Gen CPUs (LGA1700) – Up to 65W TDP
• Triple Display Support: HDMI 2.0b, DisplayPort 1.4, VGA
• Dual Intel LAN: 2.5GbE + 1GbE for high-speed network redundancy
• Storage Options:
  • 1x M.2 2280 NVMe/SATA SSD
  • 2x 2.5” HDD/SSD bays
  • Optional slim ODD or 3rd 2.5” drive with Shuttle PHD4 accessory
• Expansion:
  • 1x M.2 2230 E-key (for Wi-Fi/Bluetooth)
  • Up to 5 COM ports with Shuttle PCM31 module
• Efficient Cooling: Integrated heat-pipe with smart fan for 24/7 use
• Operating Temp: 0°C to 50°C
• Compact Design: Just 3 liters, ideal for replacing bulky desktops

Ideal For:

• Digital signage
• Retail/POS terminals
• Office or medical use
• Surveillance & access control
• Industrial HMI or controller interfaces

Datasheet: XPC slim XH610
